B15
High-throughput direct-to-object inkjet for cylindrical bottle production.
A production-focused rotary single-pass system for controlled cylindrical bottle decoration.
Production Role
Built for controlled, high-throughput bottle decoration.

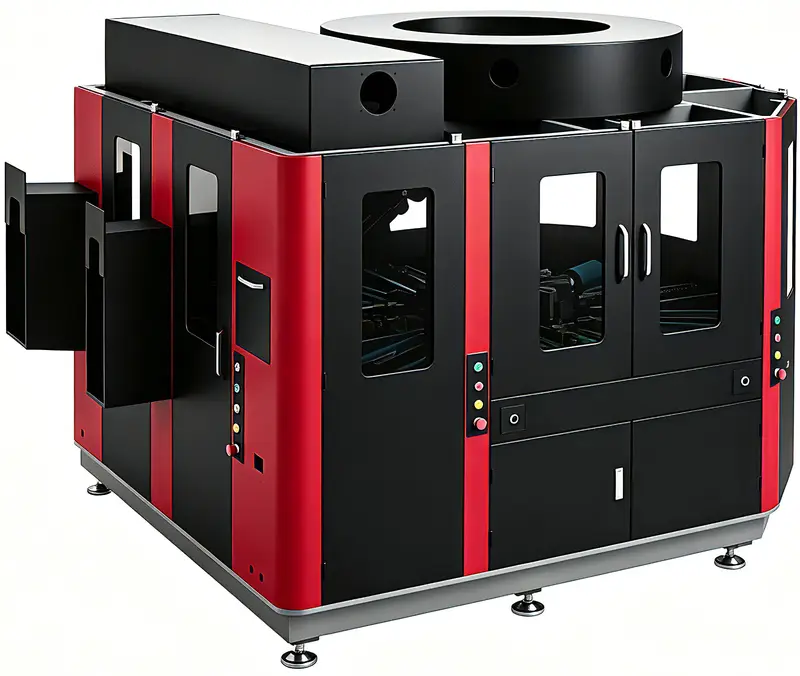

B15 combines cylindrical bottle handling with an automated rotary production architecture.
Controlled automated productionRotary handling + registration + treatment + printing + cure
Automated rotary production architecture.
Real Operation
See B15 in real operation.
Observe real bottle handling, machine motion and production behavior on the B15.
Key Performance
Production-scale performance for cylindrical bottle applications.
- 50–60
- pcs/minMaximum printing speed
- 15-head
- single-passPrinting architecture
- Up to 225
- mmMaximum image height
- Product diameter
- 40–130 mm
- Bottle height
- Up to 320 mm
- Resolution
- Up to 600 × 1200 dpi
System & Technical Specifications
B15 system and technical specifications
Application & Materials
- Application
- Cylindrical bottles
- Materials
- Plastic / Metal
Production Architecture
- Rotary system
- 12-station rotary table system
- Printing mode
- Single-pass inkjet architecture
Printing System
- Print heads
- 15
- Carriage control
- Servo-driven ink carriages
Product & Print Dimensions
- Product diameter
- 40–130 mm
- Bottle height
- Up to 320 mm
- Image height
- Up to 225 mm
Performance
- Printing speed
- 50–60 pcs/min
- Resolution
- Up to 600 × 1200 dpi
More system details
Loading & Handling
- Manual loading on conveyor
- Universal servo robot loads products into jigs
Registration & Verification
- Camera pre-registration
- Automatic height check
Pretreatment
- Flame treatment
Ink / Color Configuration
- Standard color: WCMYK
- Optional configurations: LcLm / OG / varnish
UV Curing
- UV pin cure and final cure
Control
- PLC touch-screen

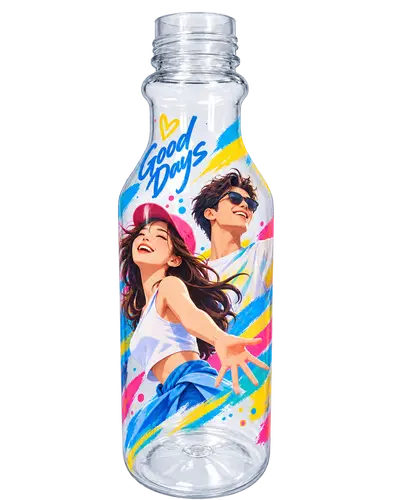

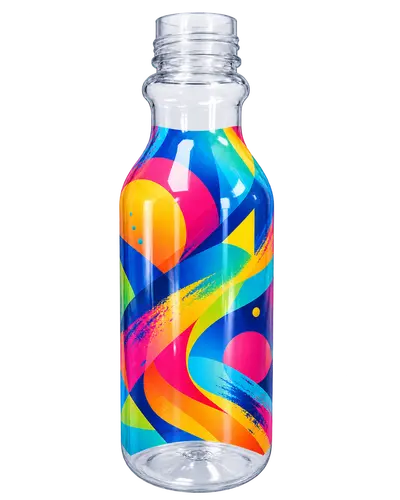

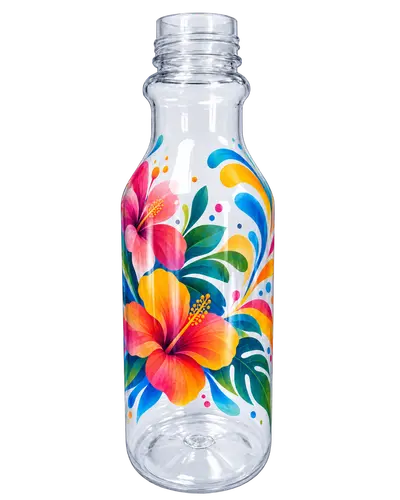

Real Printed Results
Printed bottle examples from B15 applications.
Application Fit
Built for cylindrical bottle production.
Validated against the real application.
Strong application alignment
- Cylindrical bottle production
- Plastic / Metal
- Automated high-throughput applications
- Within documented product / print limits
Validate for the project
- Material & Surface
- surface / coating · pretreatment response · adhesion
- Print & Product
- artwork / coverage · exact dimensions
- Handling & Production
- fixture / handling · production requirements
Final suitability depends on the actual bottle, material, artwork and production requirement.
