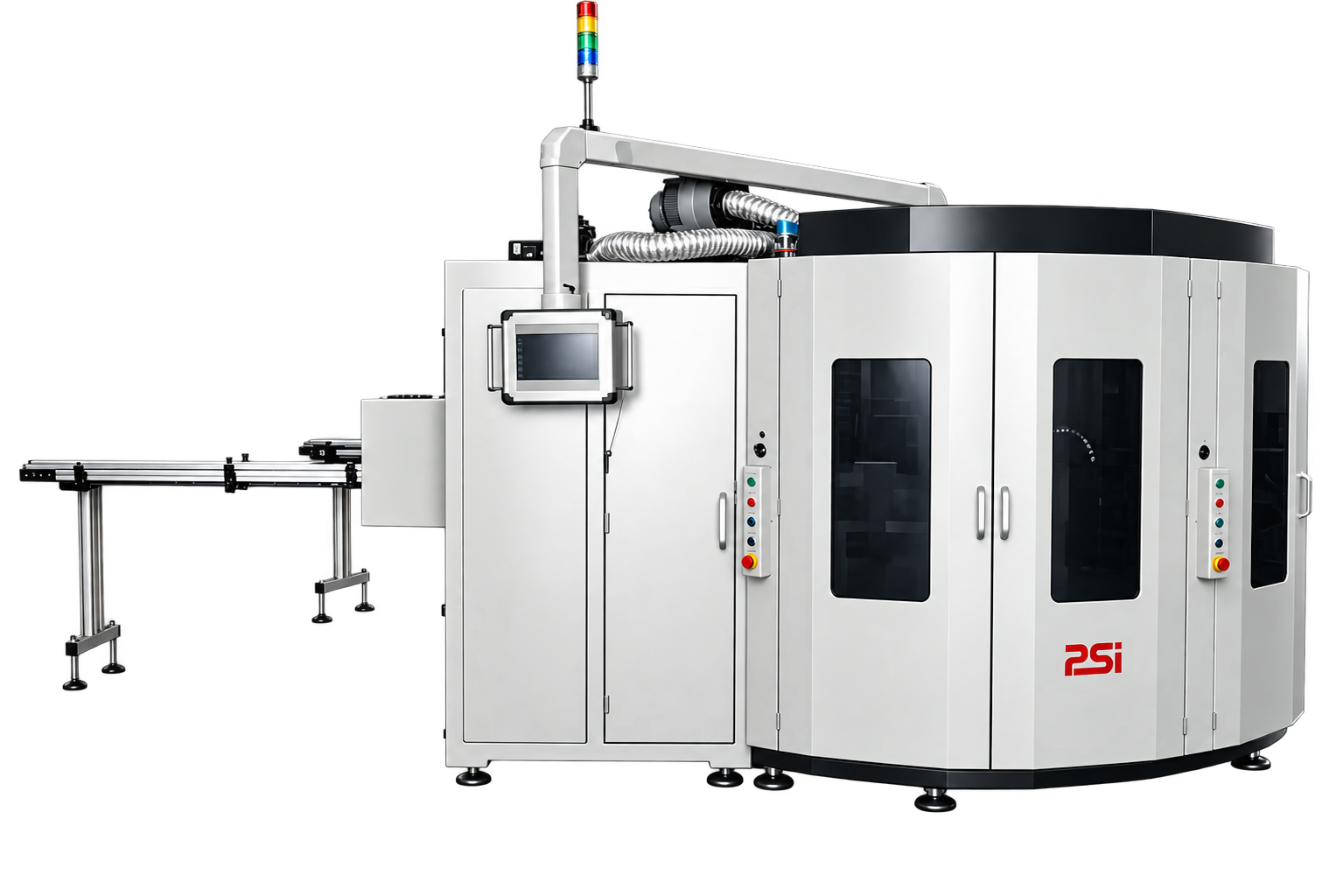

Automatic Rotary-Screen Printing
US2-8MMulti-shape rotary-screen decoration, built for production.
A modular servo rotary-screen platform for supported glass, plastic and metal objects across cylindrical, elliptical, square and conical geometry classes.
Start an Application Review
- 50 pcs/min
- Maximum output
- 350 mm
- Current height capability
- 2–8 colors
- Modular color architecture
- Glass · Plastic · Metal
- Supported materials
Application Breadth
Built around real containers, not a single shape.
Supported applications span multiple materials and geometry classes. Exact fit is confirmed through product and sample evaluation.
Rotary-Screen System Architecture
Modular by design. Configured around the application.
Servo-driven handling and rotary-screen decoration form the core platform. Pretreatment, preregistration, curing, inspection and other options vary with the project.
Servo handling
Controlled indexing and object positioning.
Screen printing
Modular 2–8 color decoration architecture.
Process options
Pretreatment, preregistration and curing as required.
Quality options
Camera inspection and related functions by configuration.
Handling & Process Logic
A controlled sequence, adapted to the product.
The operating sequence is configured around the application rather than one universal station topology.
- 01Load & position
- 02Prepare as required
- 03Print & cure
- 04Transfer & inspect
Engineering System Presentation
See US2-8M as a complete engineering system.
A short film presents the system, object-flow context and selected process moments in one continuous engineering story.
Real Operation
Visible handling in a real production sequence.
Jars move through the line with visible handling and transfer. The footage is presented as production context without turning playback into a rate claim.
In production
- Multiple objects in sequence
- Visible machine handling
- Continuous line context
- Finished objects in view

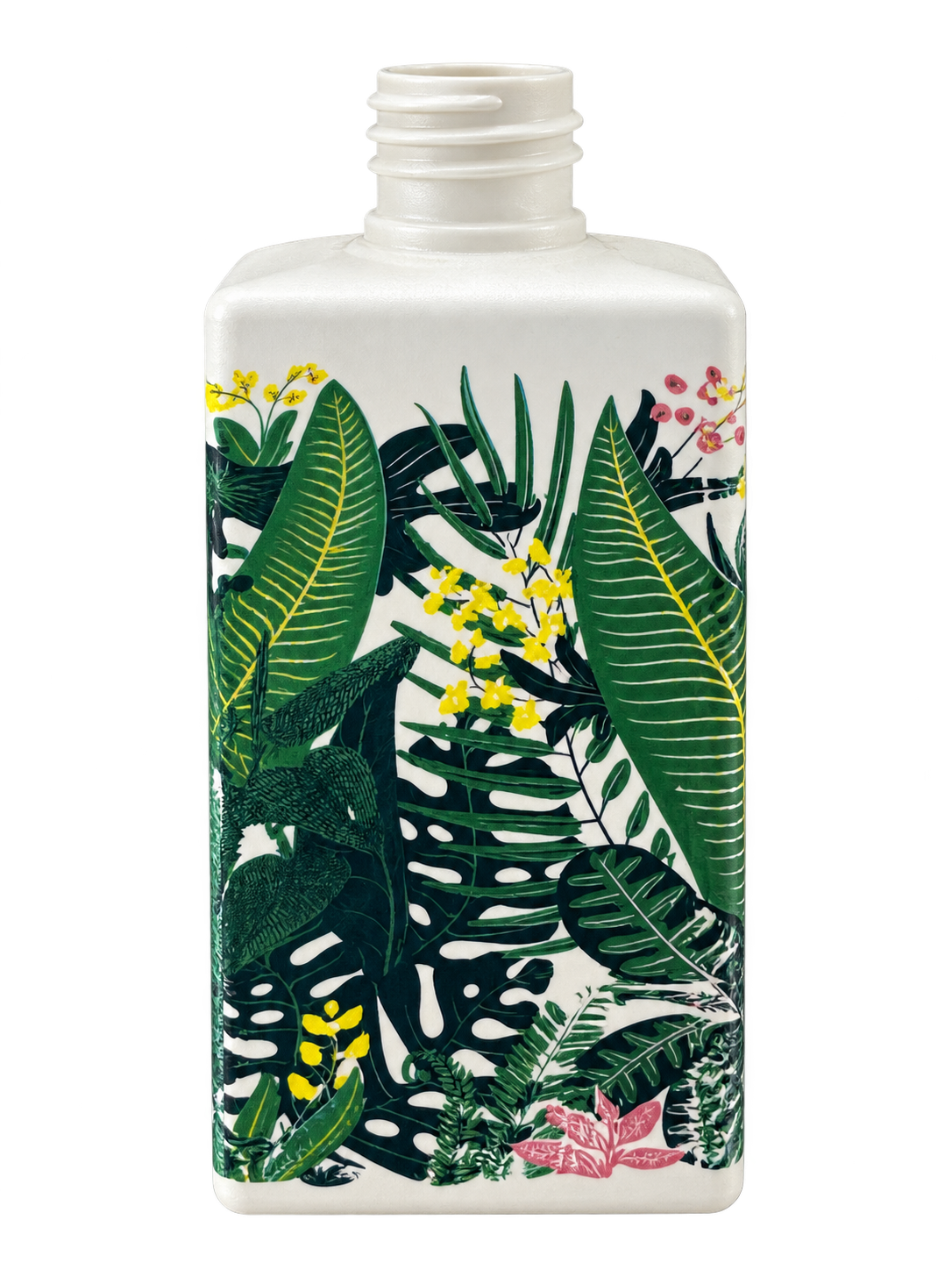

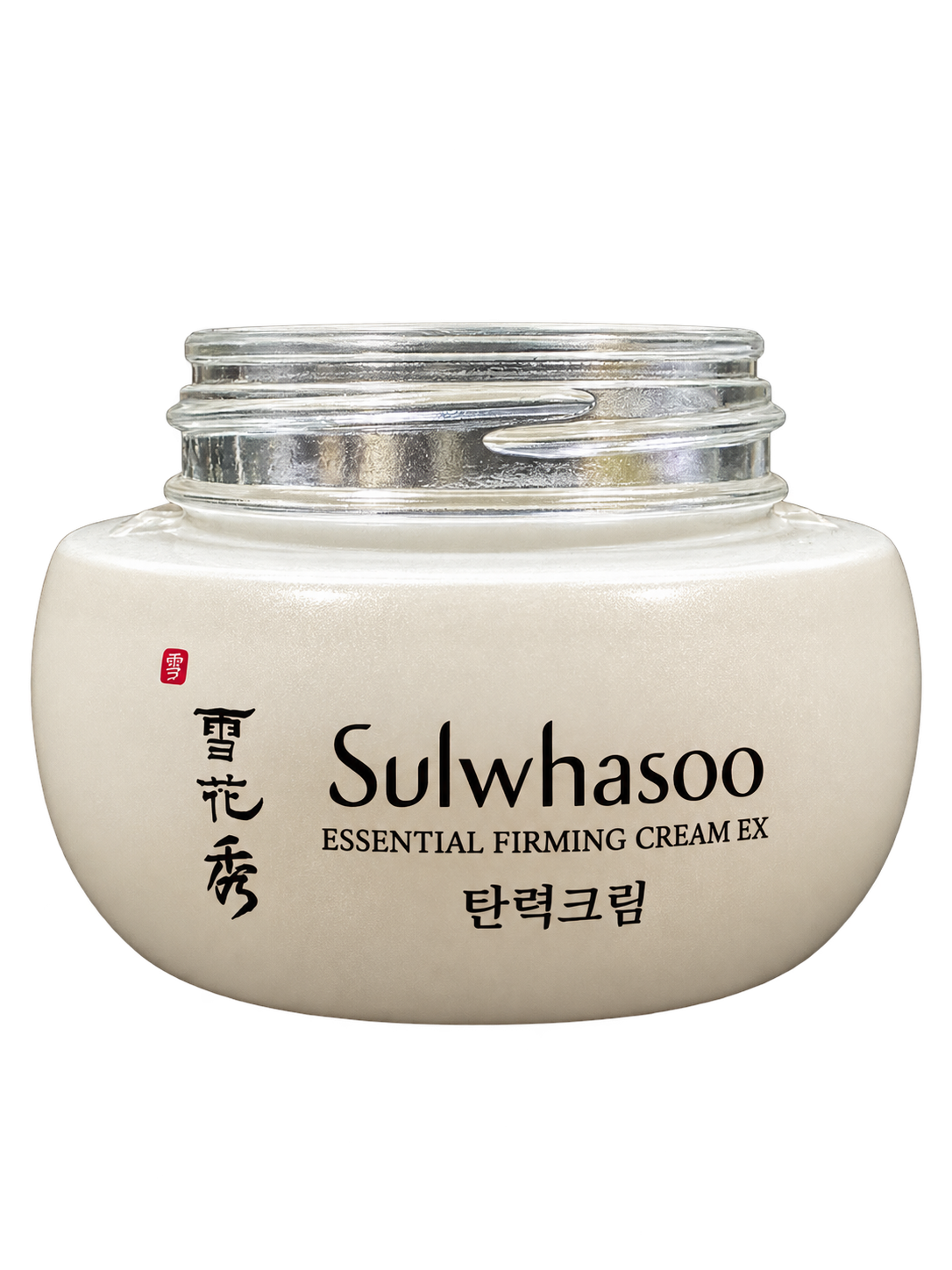

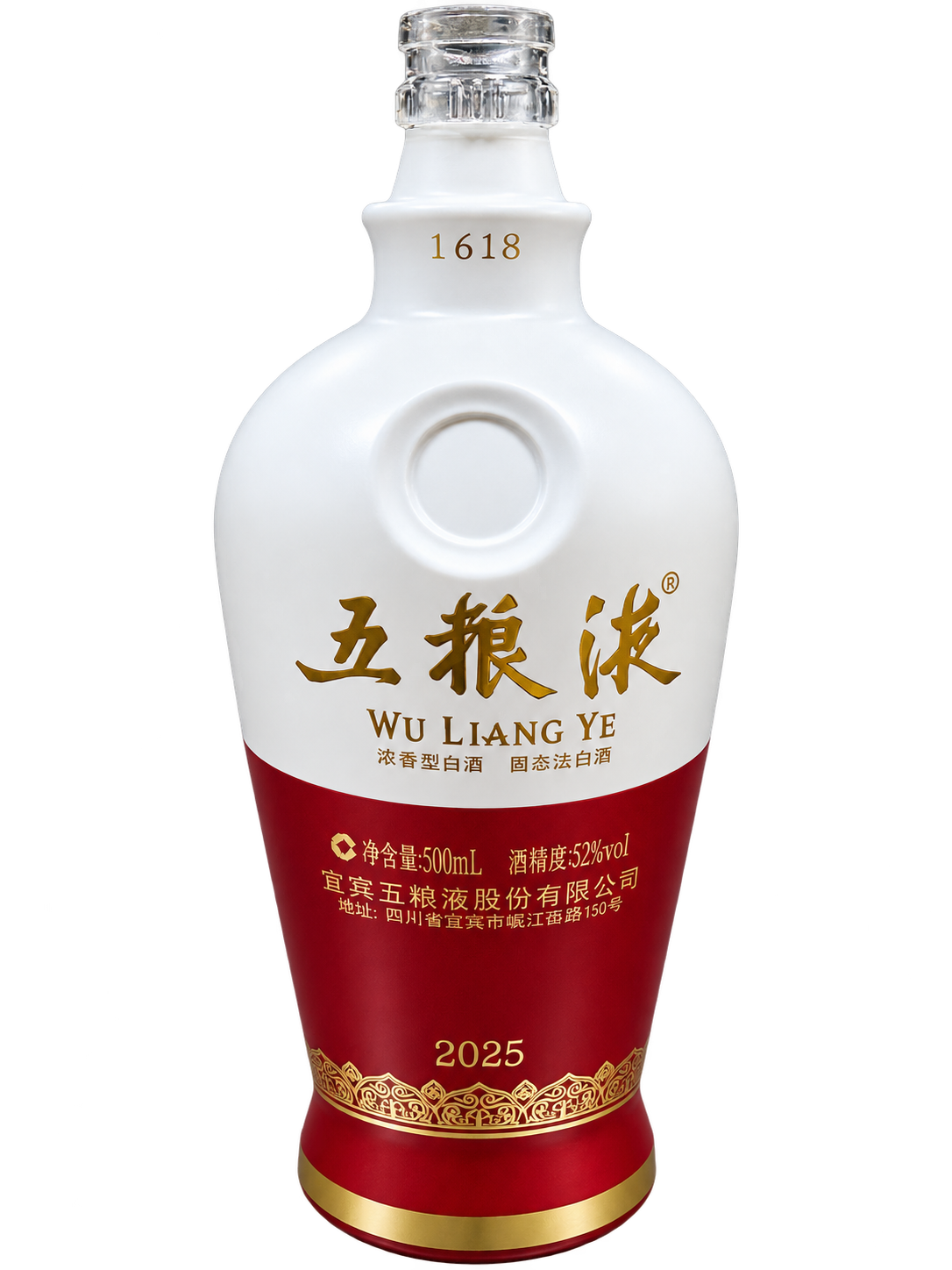

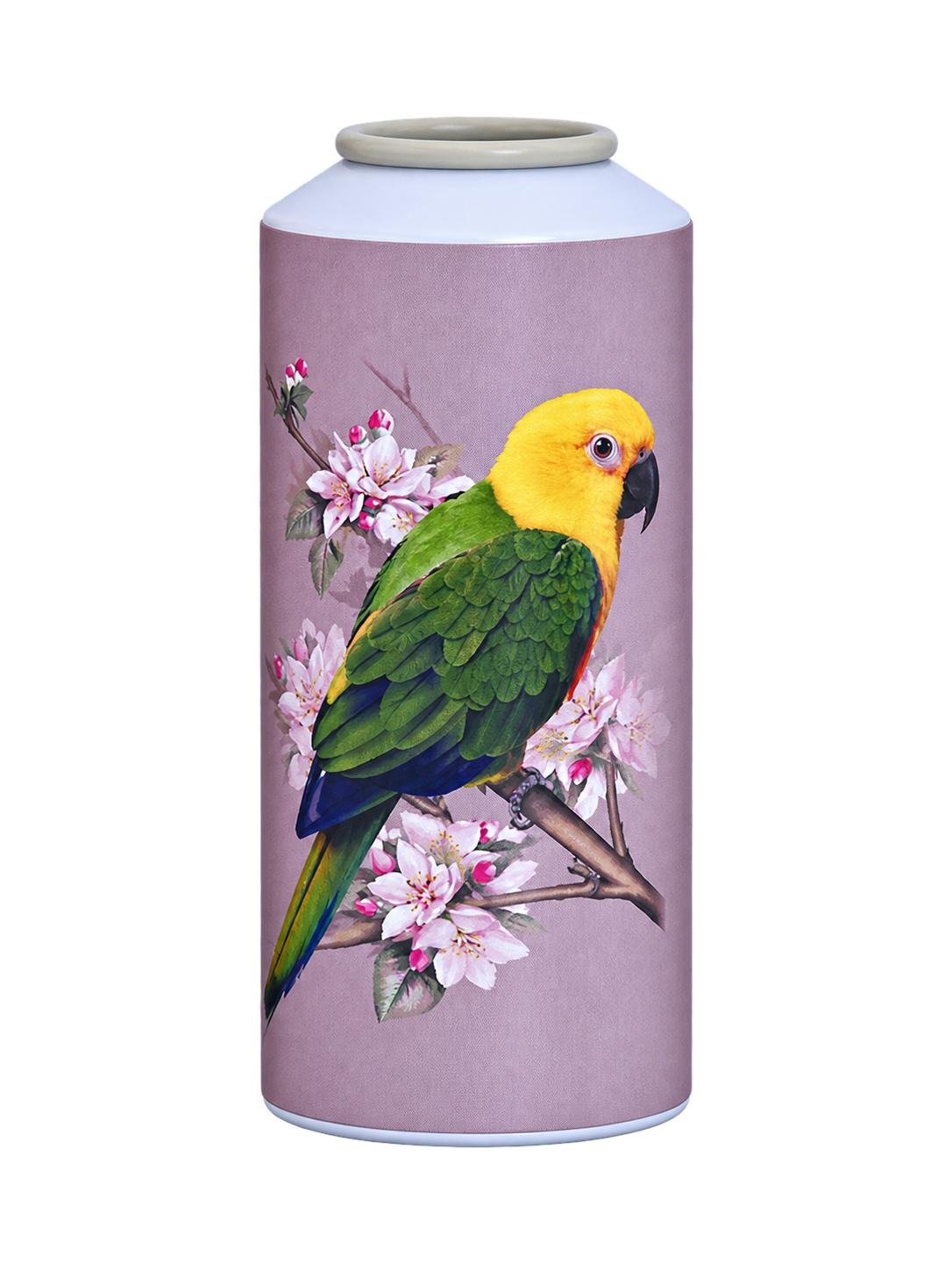

Printed Results
A closer look at decorated container outcomes.
Representative results across different materials and forms.
Technical Specifications
Key technical specifications.
Core specifications for the current US2-8M platform.
- Maximum output
- 50 pcs/min Current technical-data maximum; application conditions affect actual production.
- Height capability
- 350 mm Current baseline capability; exact object fit requires evaluation.
- Color architecture
- 2–8 colors Modular rotary-screen configuration.
- Materials
- Glass / Plastic / Metal Supported material classes.
- Geometries
- Cylindrical / Elliptical / Square / Conical Geometry classes.
Application Fit
Choose by product, decoration and how the job needs to run.
US2-8M is a strong candidate when repeat rotary-screen decoration is required across supported container classes and materials.
Product & material
Object geometry, surface and material determine handling and process needs.
Decoration target
Color count, artwork, coverage and finishing requirements shape the configuration.
Production context
Handling, automation and optional inspection are defined around the job.
Application Review
Bring your product, material and production goal.
Share the object, target decoration, expected production context and required options. CyberInkjet will coordinate the application review with PSI.
Start an Application Review
