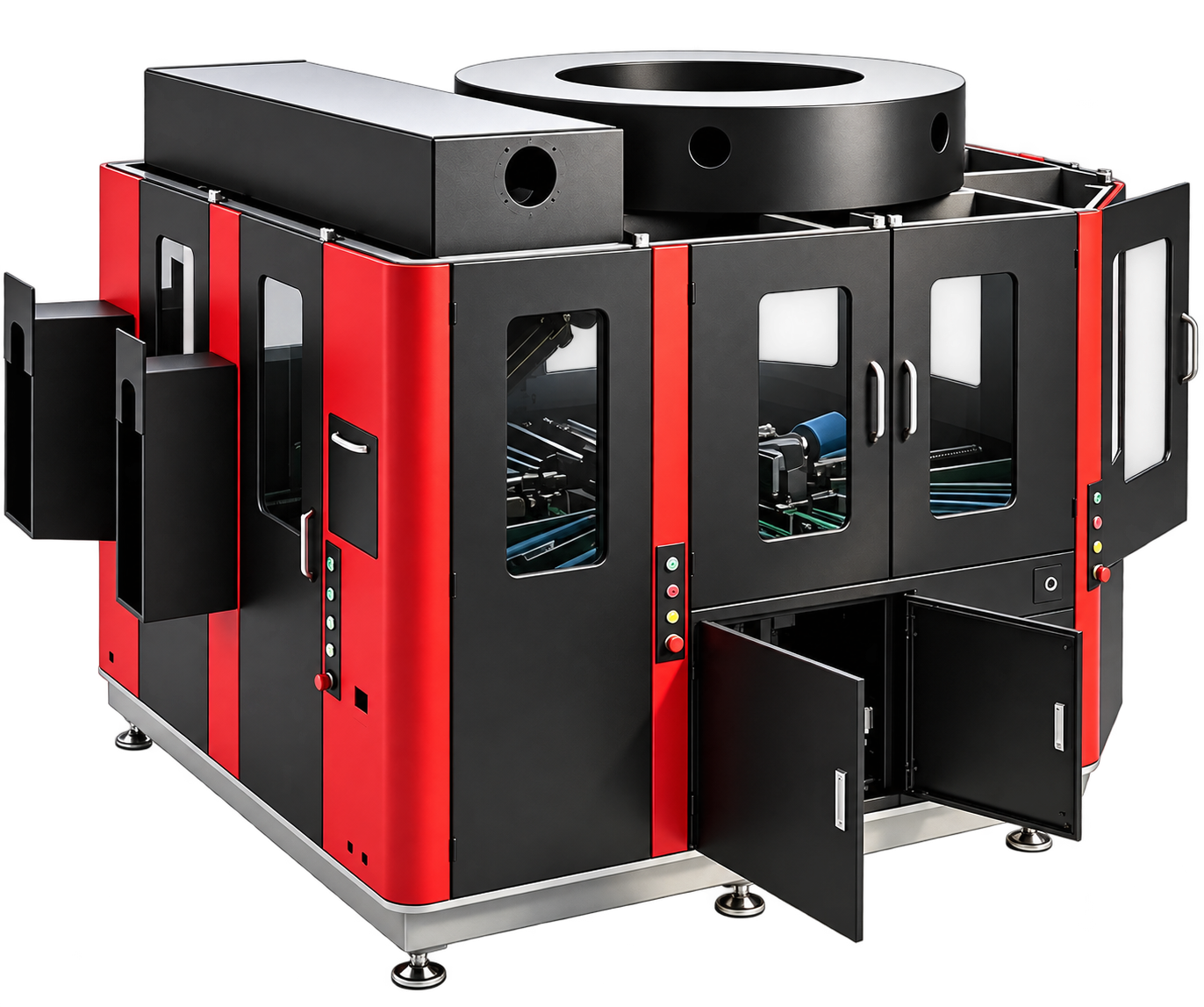

C5 · Rotary Single-Pass Inkjet
One platform.
Tube + cup.
A 5-head single-pass rotary platform for tubes, cups and supported aluminum-can applications across verified plastic and metal ranges.
- 10-station rotary
- 5 heads
- 600 × 1200 dpi
- Product diameter
- 40–130 mm
- Max product height
- 250 mm
- Base printing system
- WCMYK
- Rotary architecture
- Single-pass
02 · Cross-Application Identity
Built around tube + cup flexibility.
Built for both tube and cup applications. C5 brings tube and cup production into one rotary single-pass platform across supported plastic and metal applications.
Tube
Soft / hard tube application category within the verified C5 operating envelope.
Cup
Cylindrical cups, plus conical cups subject to sample evaluation.
Aluminum can
Supported as a verified C5 application category within material and project constraints.
03 · Machine Architecture
5-head single-pass rotary platform.
A 10-station rotary platform built around single-pass inkjet, five printing heads and WCMYK.
- 10 stations
- Single-pass
- 5 heads
- WCMYK
Secondary configuration items such as automatic loading, flame treatment, UV pin cure and additional colors / varnish remain conditional or optional where applicable.
04 · Throughput Relationship
Image height changes throughput.
Throughput varies with the required print-image height. Review the corresponding production range for each print-height tier.
Each print-height tier is shown with its corresponding production range.
- 75 mm
- 50–60 pcs/min Image-height tier → corresponding throughput
- 150 mm
- 30–40 pcs/min Image-height tier → corresponding throughput
- 225 mm
- 20–35 pcs/min Image-height tier → corresponding throughput
05 · Application Breadth
Clear application families.
Clear material range.
C5 supports tube, cup and aluminum-can applications across verified plastic and metal ranges.
- Tube
- Cup
- Aluminum can
- Plastic
- Metal
- Cylindrical
- Conical cup*
* Conical cups remain subject to sample evaluation.

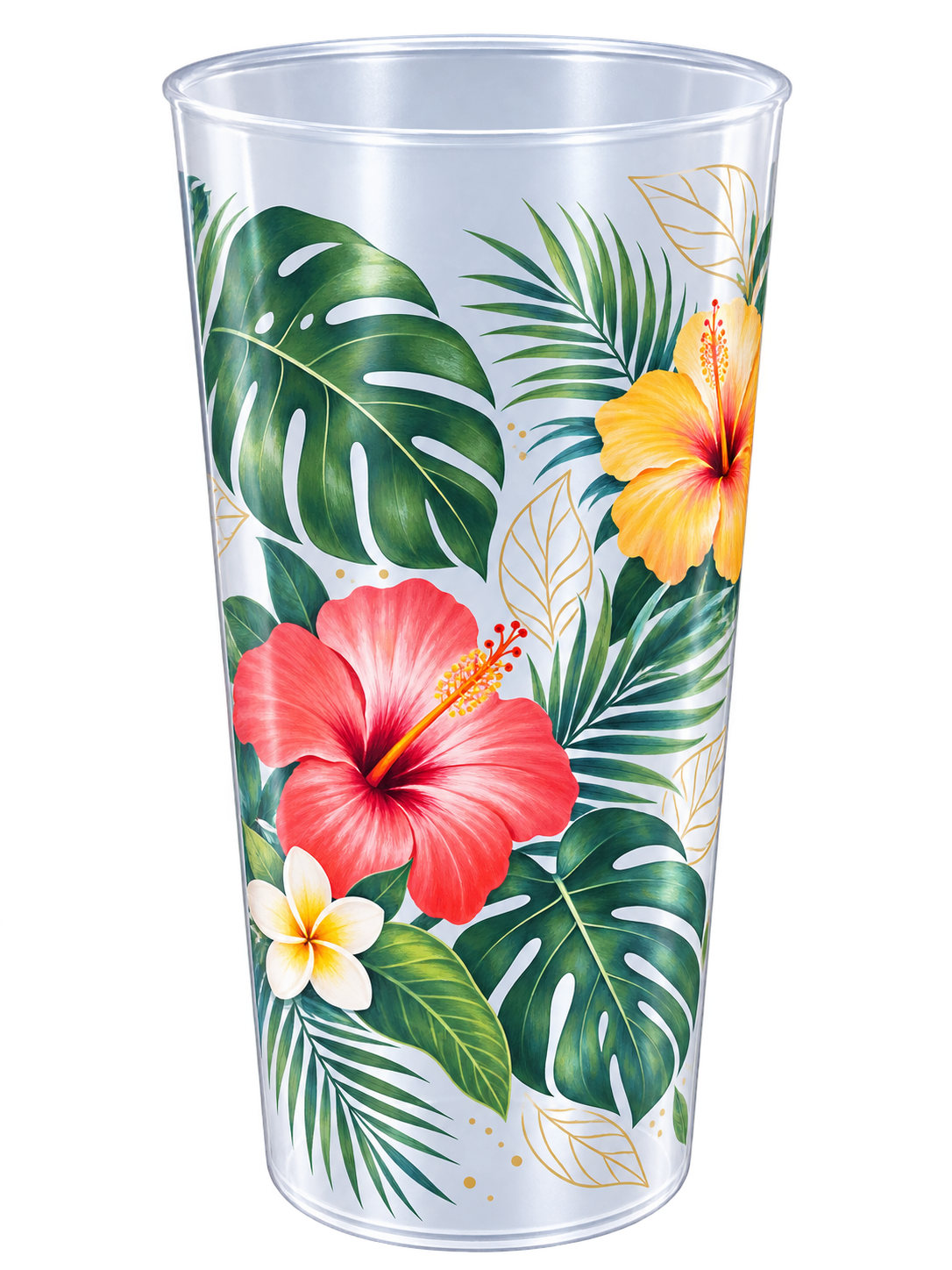

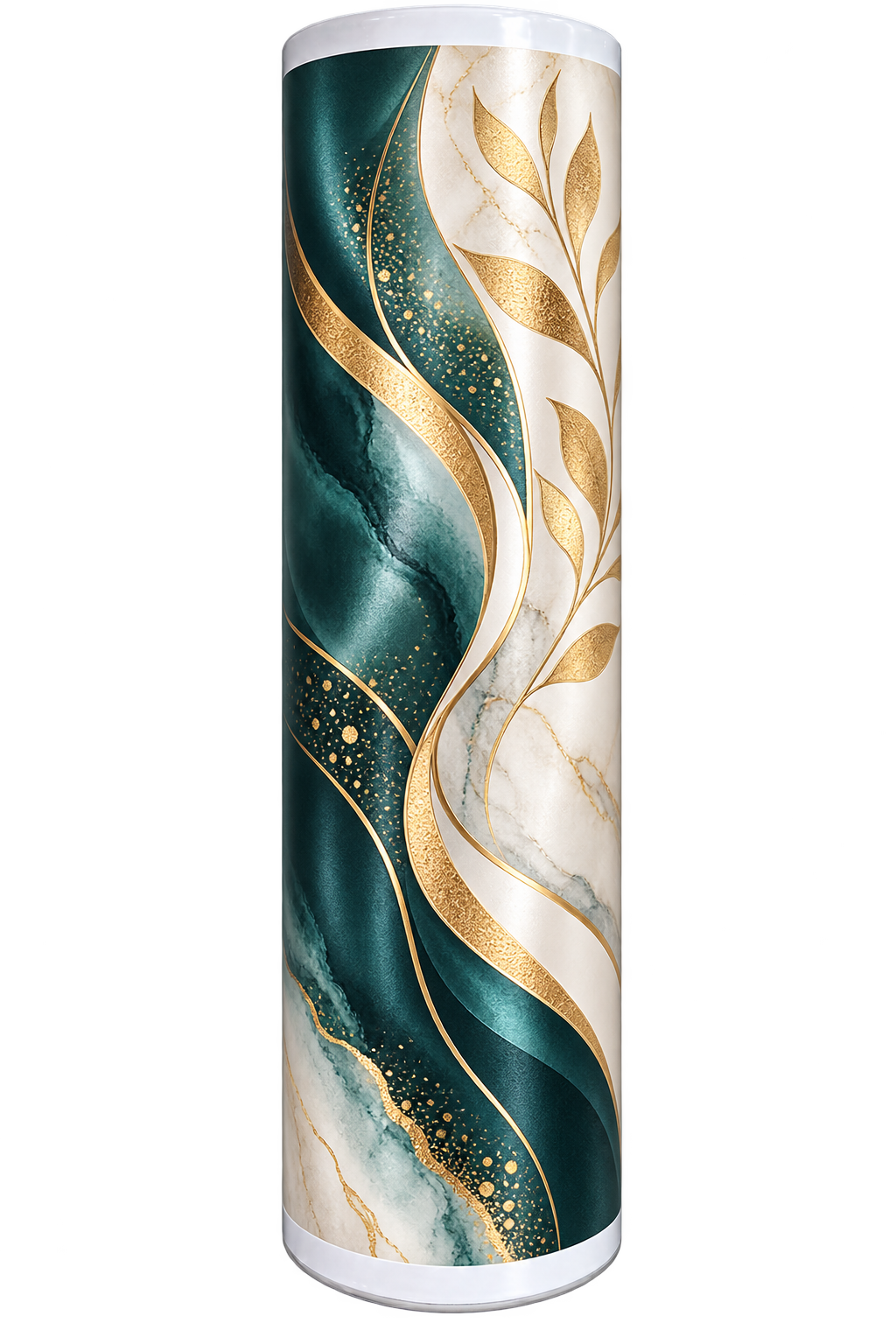

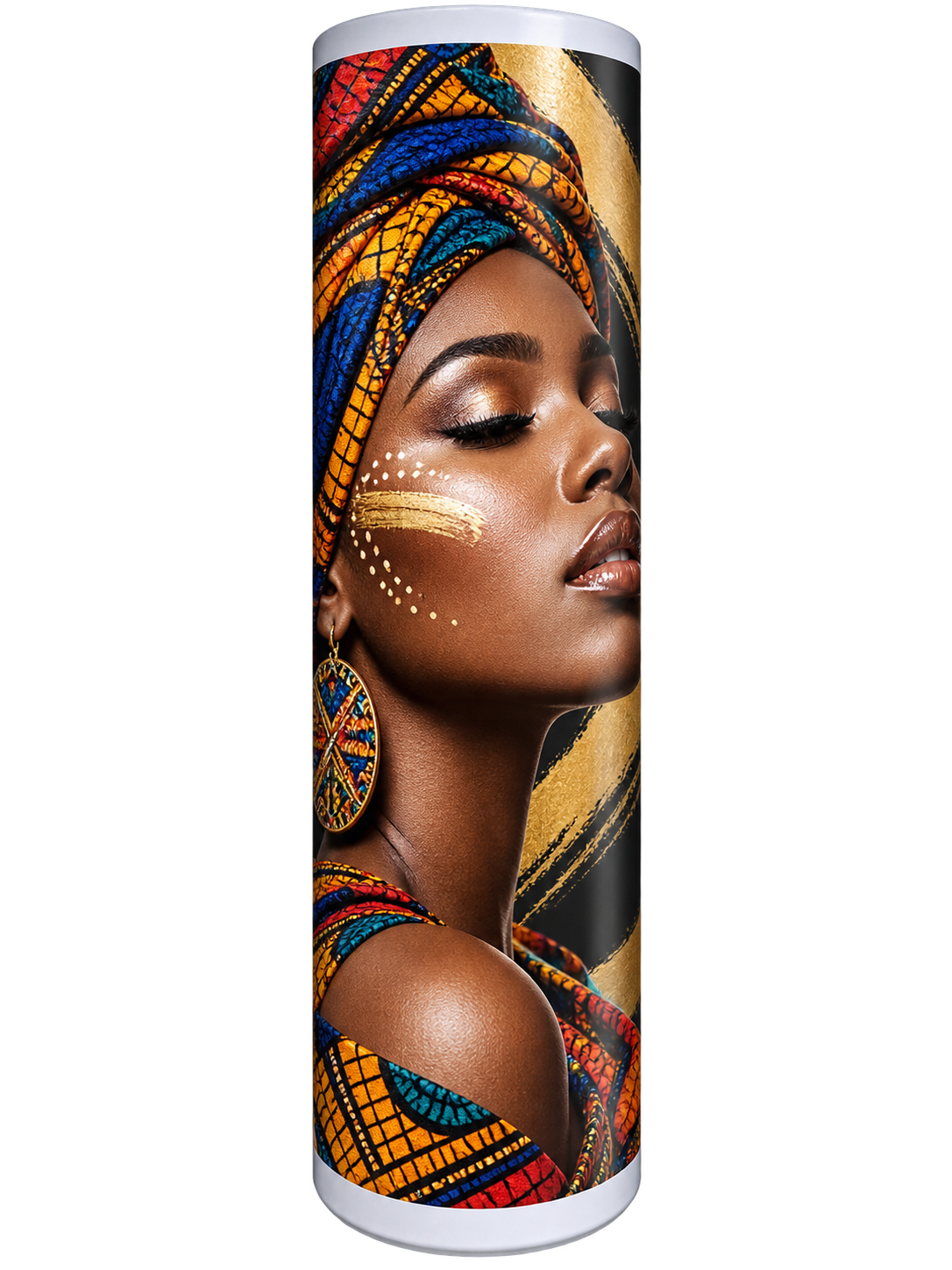

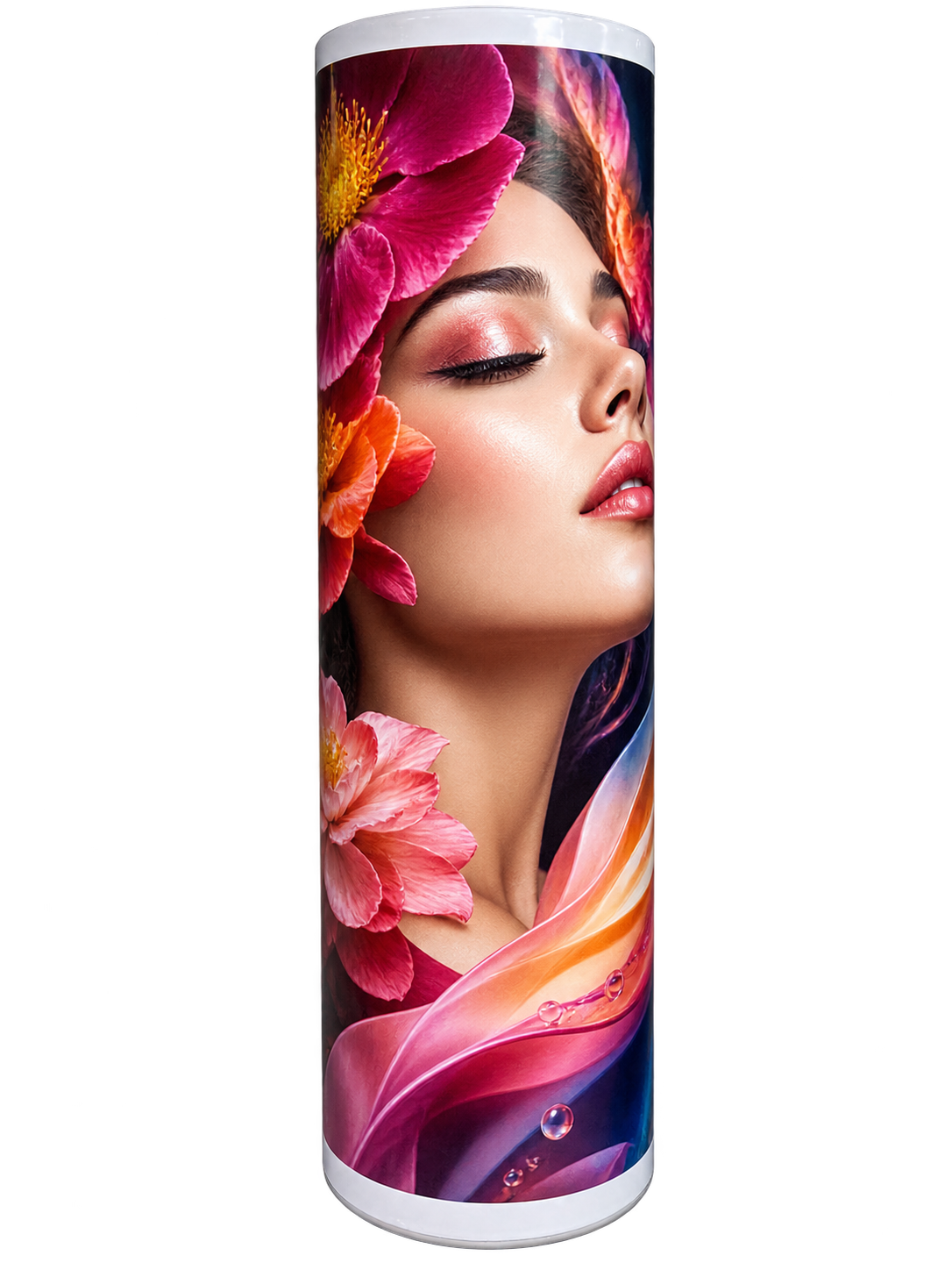

06 · C5 Application Results
Printed application examples.
Selected C5 application visuals across aluminum and plastic container forms.
Explore representative container forms across the current C5 application range.
07 · Technical Specifications
Operating envelope,
without hidden assumptions.
Core operating specifications are shown below. Optional and project-specific configurations are reviewed against the application requirement.
75 mm → 50–60 pcs/min150 mm → 30–40 pcs/min225 mm → 20–35 pcs/min
- Architecture
- 10-station rotary · single-pass
- Printing heads
- 5
- Materials
- Plastic / Metal
- Applications
- Tube / Cup / Aluminum can
- Product diameter
- 40–130 mm
- Max product height
- 250 mm
- Resolution
- 600 × 1200 dpi
- Color system
- WCMYK + supported options
- Conical cups
- Subject to sample evaluation
- Configuration items
- Manual / optional automatic loading; other options project-dependent
08 · Application Validation
Validate the object,
not just the category.
Application fit depends on the actual object, material, geometry and intended print area.
Object
Diameter, height, geometry and handling conditions.
Material
Plastic or metal substrate and required pretreatment / adhesion path.
Print area
Image-height requirement and the corresponding throughput tier.
09 · Application Review
Send the product.
Define the print area.
Share product dimensions, material, artwork coverage and target output. CyberInkjet coordinates application review with PSI for production suitability.
Conical and project-specific applications remain subject to sample evaluation.
