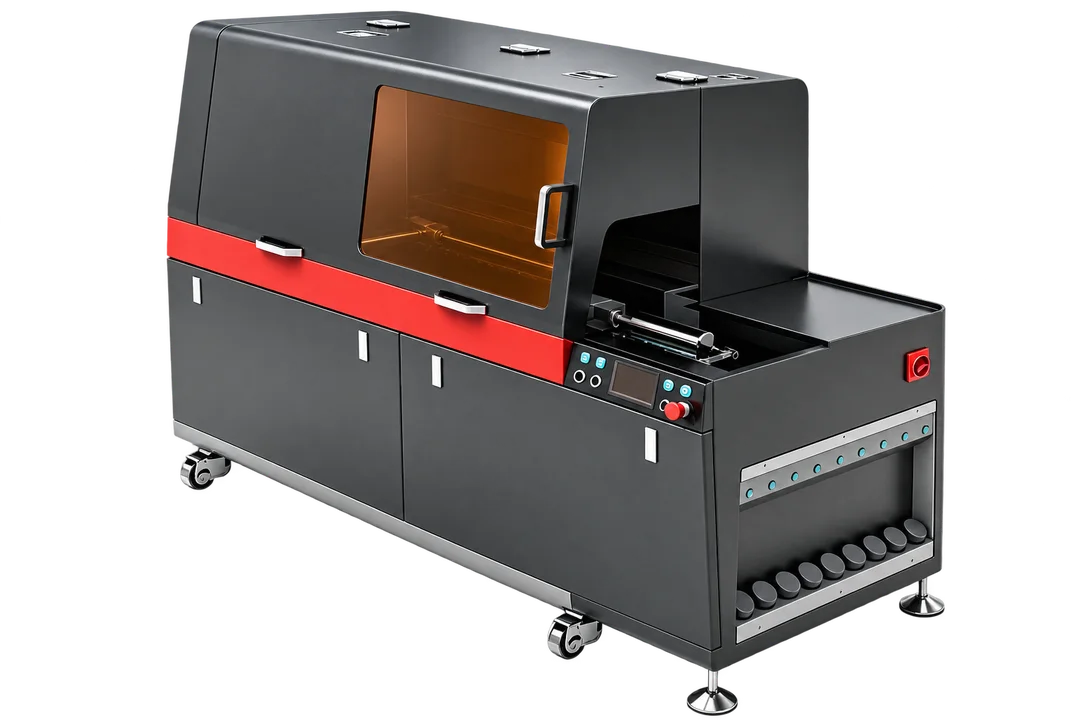

S165 · DIGITAL INKJET SYSTEM
Digital printing for complex and irregular product geometries.
A flexible multi-pass platform for challenging applications, with up to 20 mm high-gap printing and large-diameter capability.
- Max product diameter
- 220 mm
- High-gap printing
- 20 mm
- Resolution
- 600 × 1800 dpi · up to
01 · COMPLEX & IRREGULAR GEOMETRY
Designed around the shape problem.
Faceted surfaces, combined profiles, taper and changing surface height create a different printing challenge from simple cylindrical work.
- Faceted forms
- Multiple planes and transitions within one rotating object.
- Irregular profiles
- Changing outer geometry across the printable area.
- Conical / tapered
- Servo tilt supports conical product handling.
- Surface variation
- The S165 stays focused on geometry, not a generic cup category.
02 · FLEXIBLE MULTI-PASS SYSTEM
A flexible architecture for changing geometry.
The S165 uses a multi-pass platform with servo-driven control and conical-product tilt capability, supported by automated maintenance functions.
- Multi-pass flexible platform
- Current system architecture.
- All-servo driven
- Motion control across the system.
- Servo tilt
- Supported for conical products.
- Ricoh Gen 6
- Current printhead platform.
- Auto capping / cleaning
- Integrated maintenance function.
- PLC + touchscreen
- Operator control interface.
03 · SIGNATURE CAPABILITY
20MM
Up to 20 mm high-gap printing.
A verified S165 capability for applications where surface height varies across the printable profile.
04 · REAL PRODUCTION / GEOMETRY IN MOTION
Real S165 printing behavior on irregular forms.
Real production media demonstrates S165 machine–object interaction and irregular-geometry printing behavior. It does not establish material, speed or measured gap by appearance alone.
05 · REAL APPLICATION RESULTS
Different geometry problems. Different printed results.

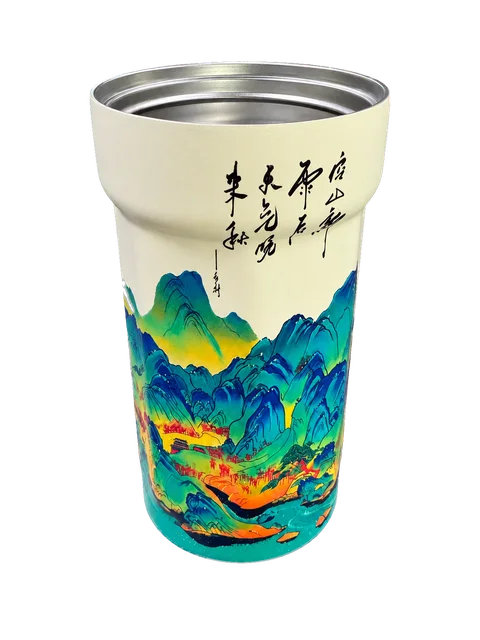

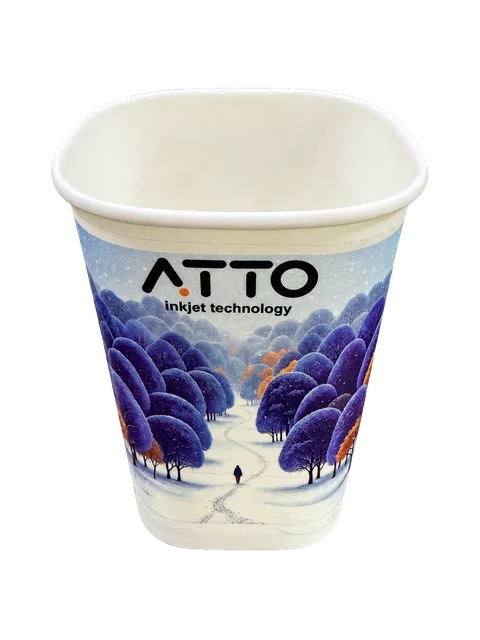

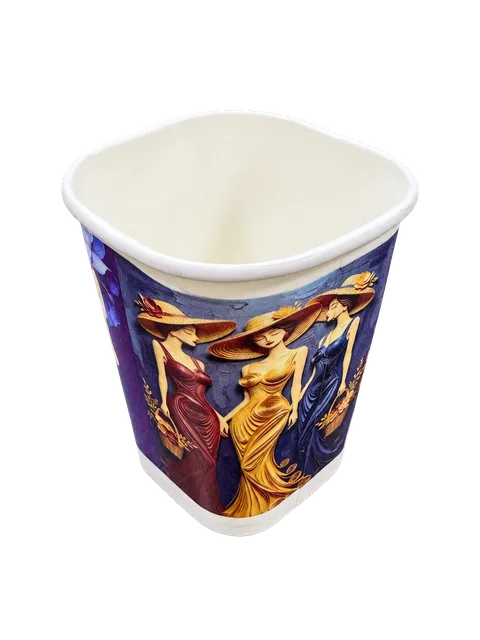

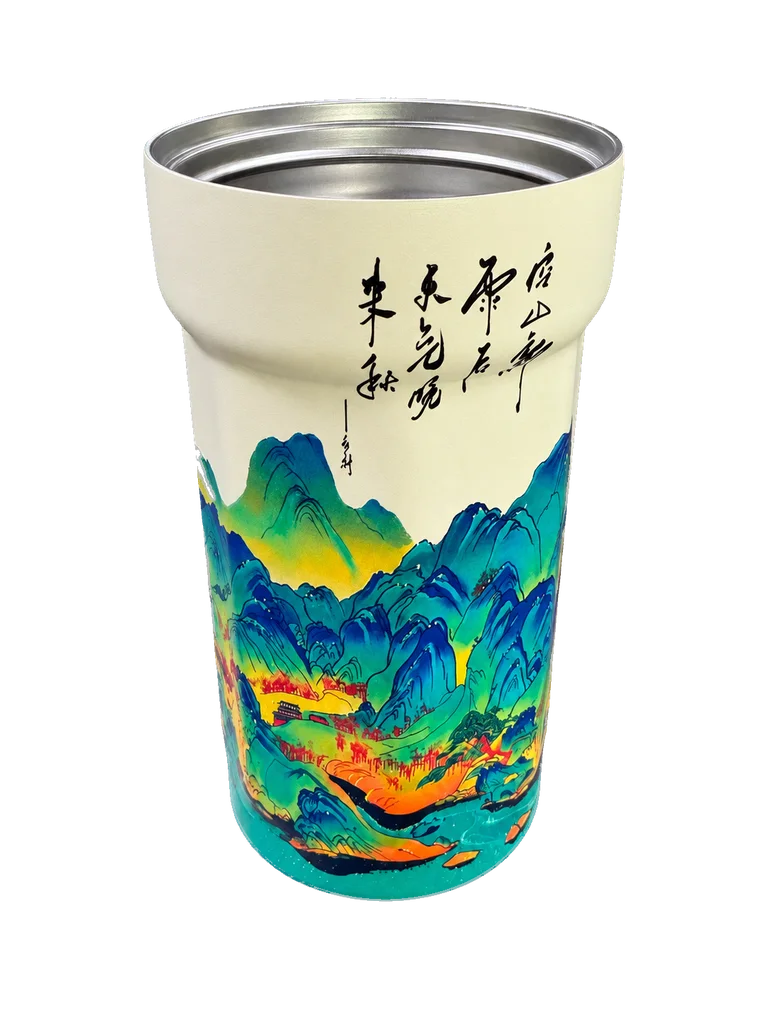

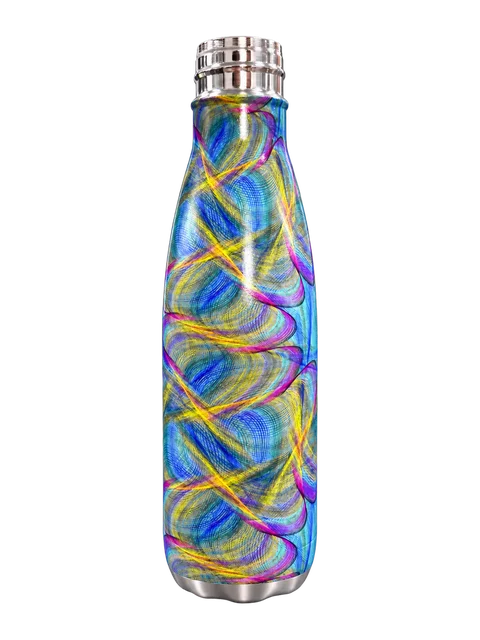

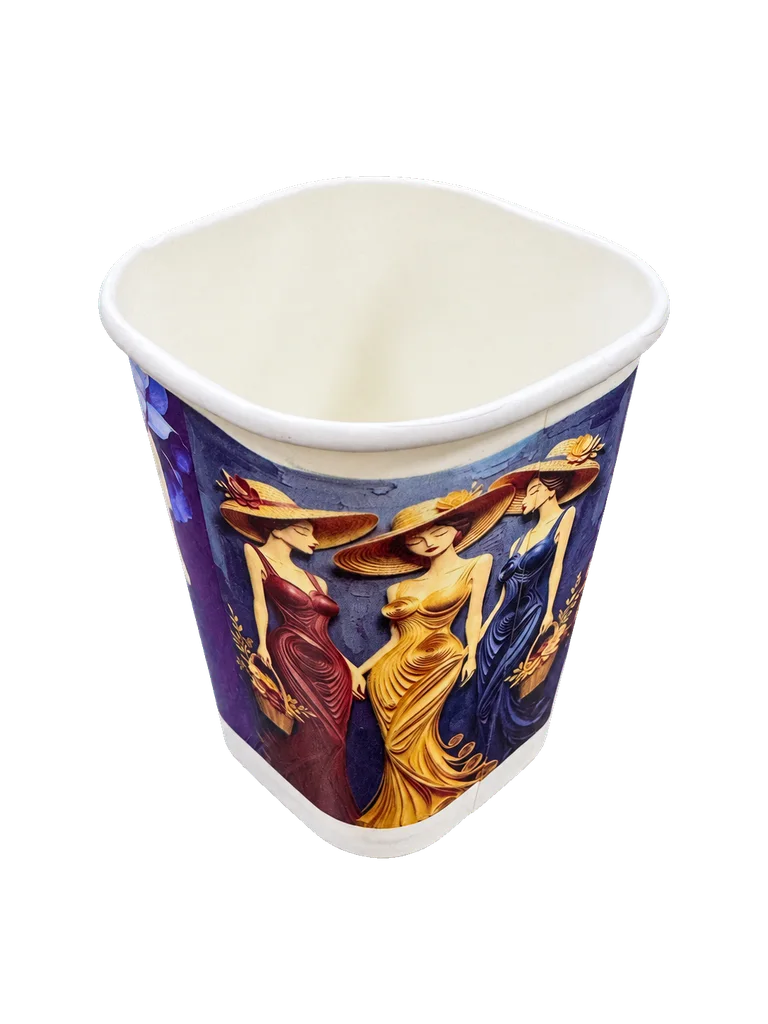

Selected examples emphasize geometry difference: faceted, tapered, irregular and changing-profile forms.
06 · TECHNICAL SPECIFICATIONS
Current verified S165 specification layer.
Application Range
- Max product diameter
- 220 mm
- Product height
- 50–350 mm
- Max image height
- 240 mm
- Materials
- Plastic / Metal / Glass
Printing
- Architecture
- Multi-pass flexible platform
- Printhead
- Ricoh Gen 6
- Resolution
- Up to 600 × 1800 dpi
- Printing speed
- 1–2 pcs/min
Ink / Process
- Ink configuration A
- Primer / W / CK / MY / V · Primer optional
- Ink configuration B
- W / CK / MY / LcLm / V
- High-gap printing
- Up to 20 mm
System / Control
- Servo tilt
- Supported
- Drive system
- All-servo driven
- Control
- PLC + touchscreen
- Auto capping / cleaning
- Supported
07 · APPLICATION VALIDATION
Suitability starts with the actual product.
Application fit depends on actual geometry, material, surface variation, print area and process requirements. Sample evaluation is appropriate for challenging geometries.
- Geometry
- Overall profile, taper, facets and changing surface height.
- Material
- Plastic, metal or glass within the verified material scope.
- Print area
- Target image location and printable surface relationship.
- Process requirements
- Actual application constraints should be reviewed before configuration.
S165 · APPLICATION REVIEW
Bring us the geometry.
Share the product shape, material and target print area so the application can be reviewed against the S165 platform.
