S2 · FLEXIBLE DIRECT-TO-OBJECT INKJET
Two positions.
One flexible S2
platform.
Dual-workstation configuration for cylindrical and conical applications, combining servo-driven control with practical fixture flexibility.
- Dual-workstation
- 360° seamless
- Servo tilt
- Plastic · Metal · Glass

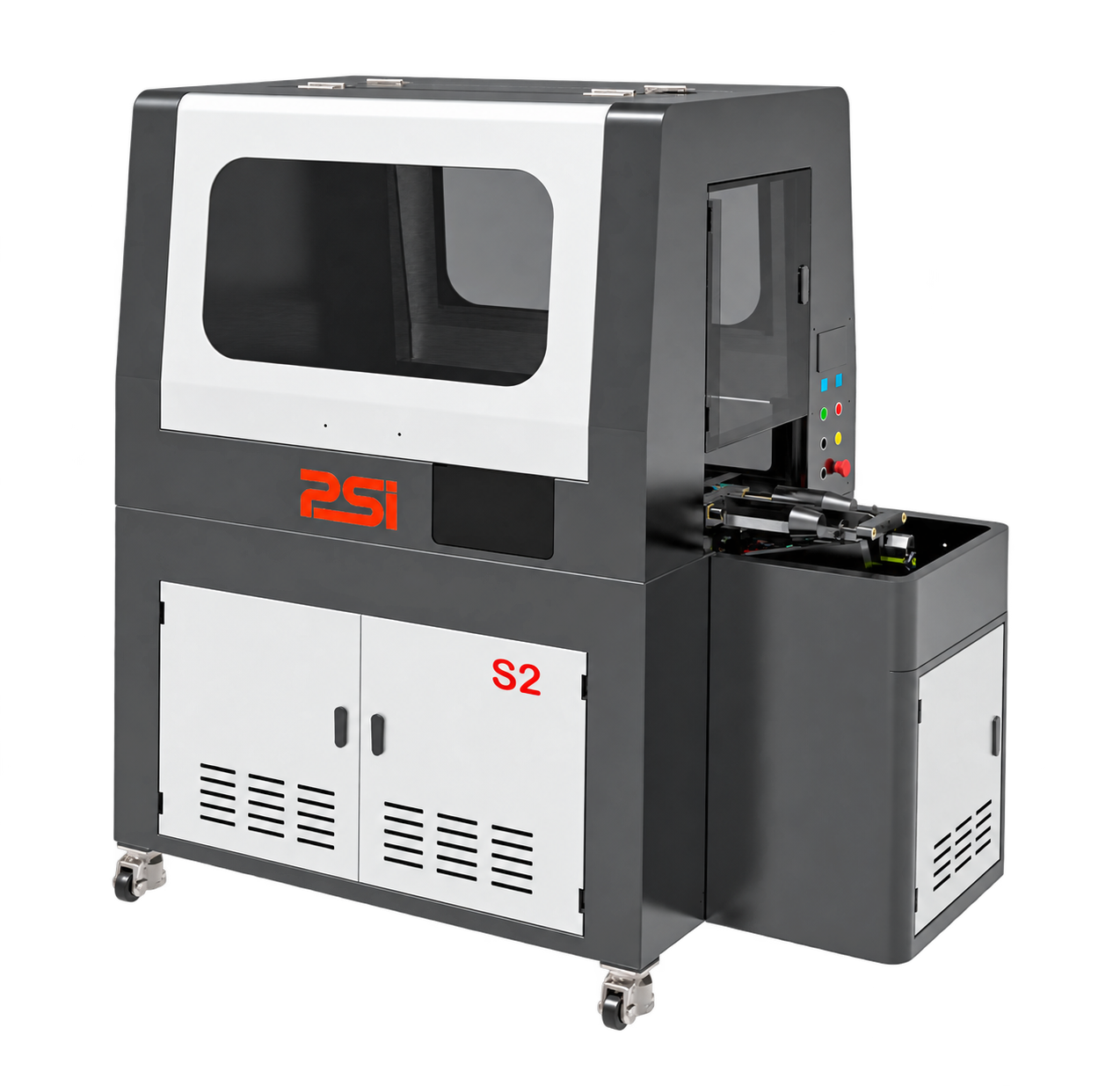

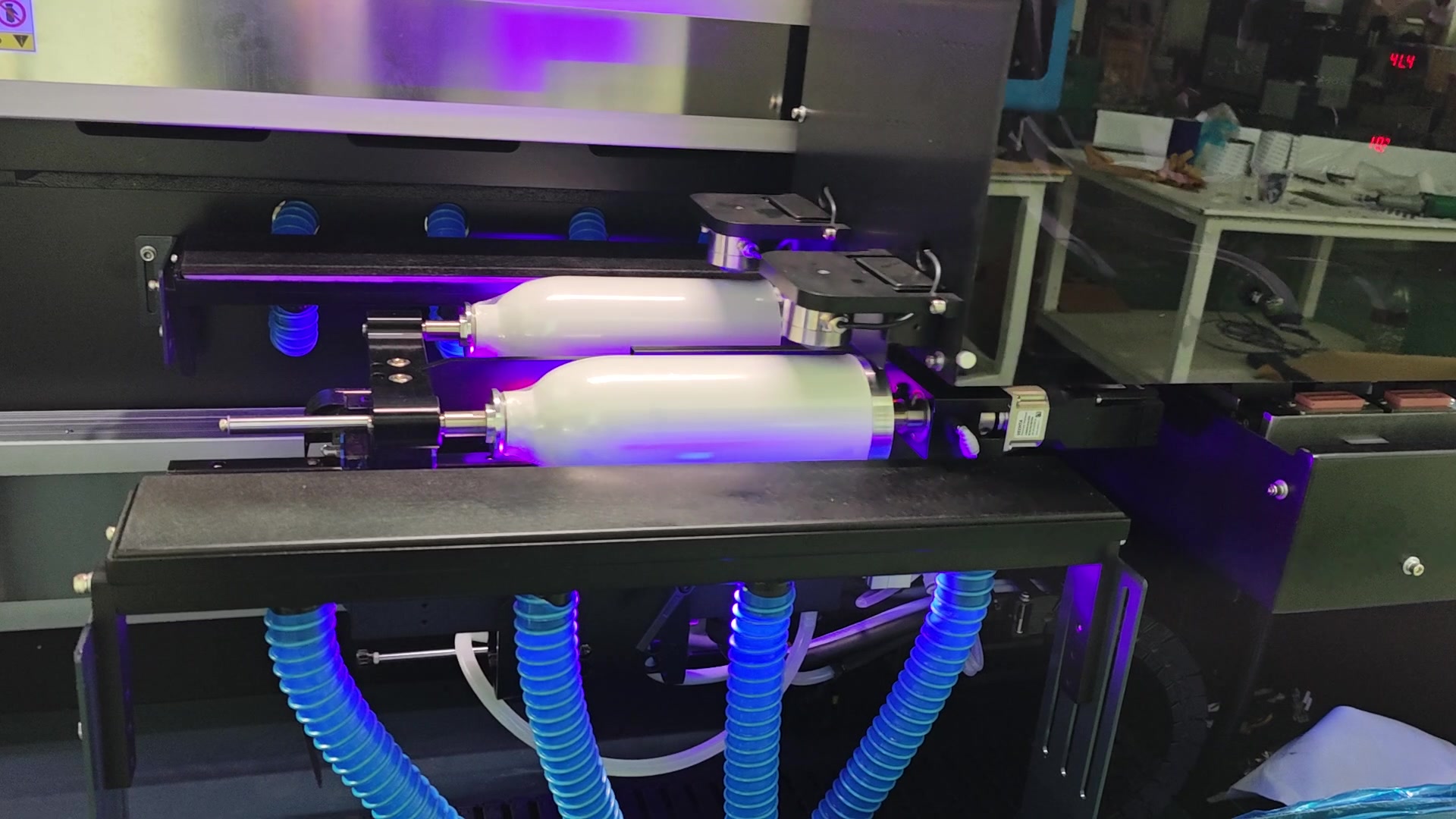

01 · DUAL-WORKSTATION CONFIGURATION
Dual-workstation configuration for flexible S2 applications.
S2’s dual-workstation / dual-fixture configuration supports practical fixture flexibility across supported cylindrical and conical applications.
- Two-position setup
- A clear dual-workstation configuration for supported S2 applications.
- Flexible fixtures
- Practical fixture flexibility across supported object forms.
- Real process
- Current S2 footage shows the machine and fixture environment in operation.
02 · FLEXIBLE APPLICATION FIT
Built around supported object geometry.
Supported object forms include cylindrical and conical bottles, cups and tubes within the current S2 application envelope.

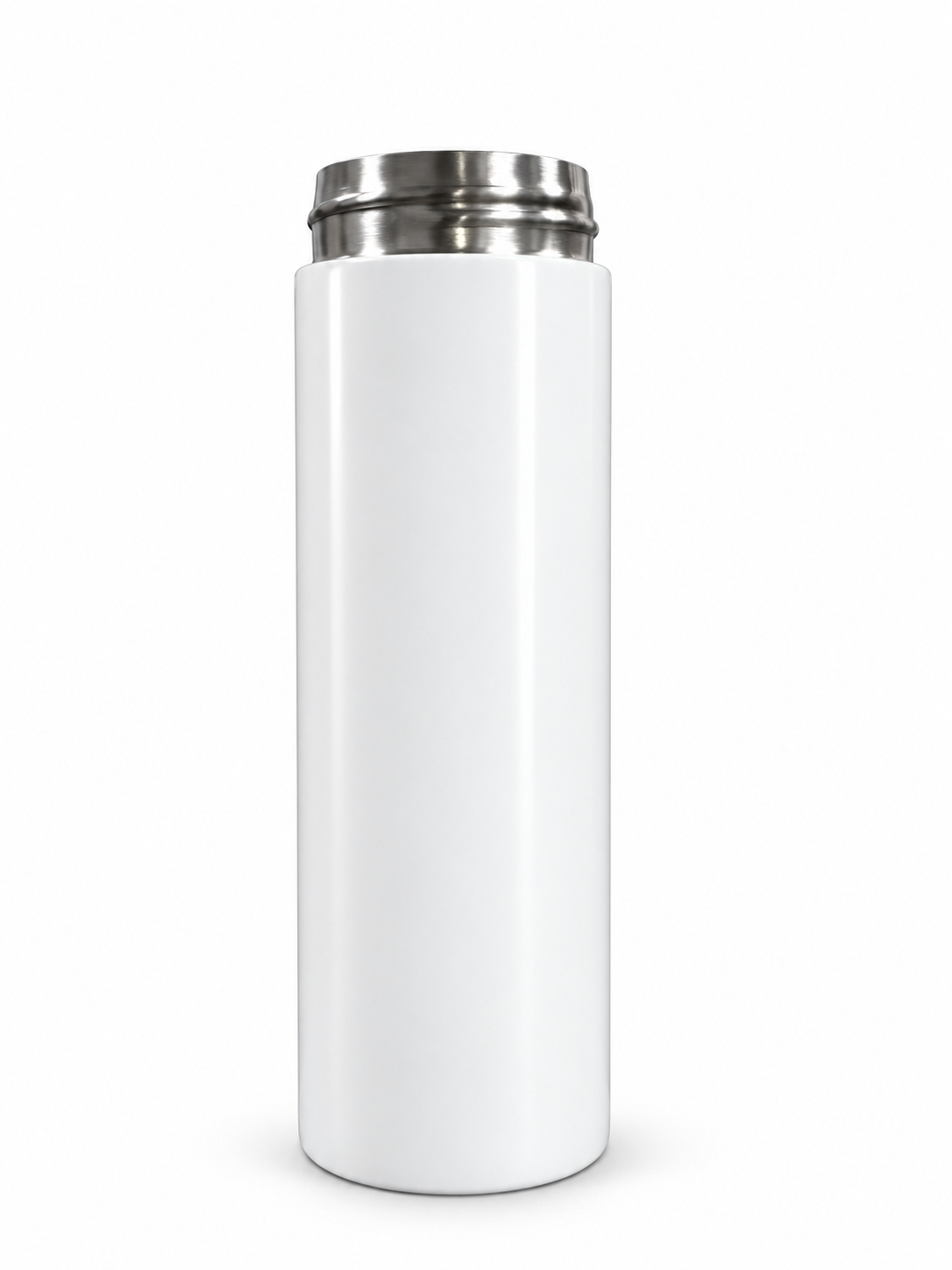

Cylindrical form
Supported form within the S2 application range.

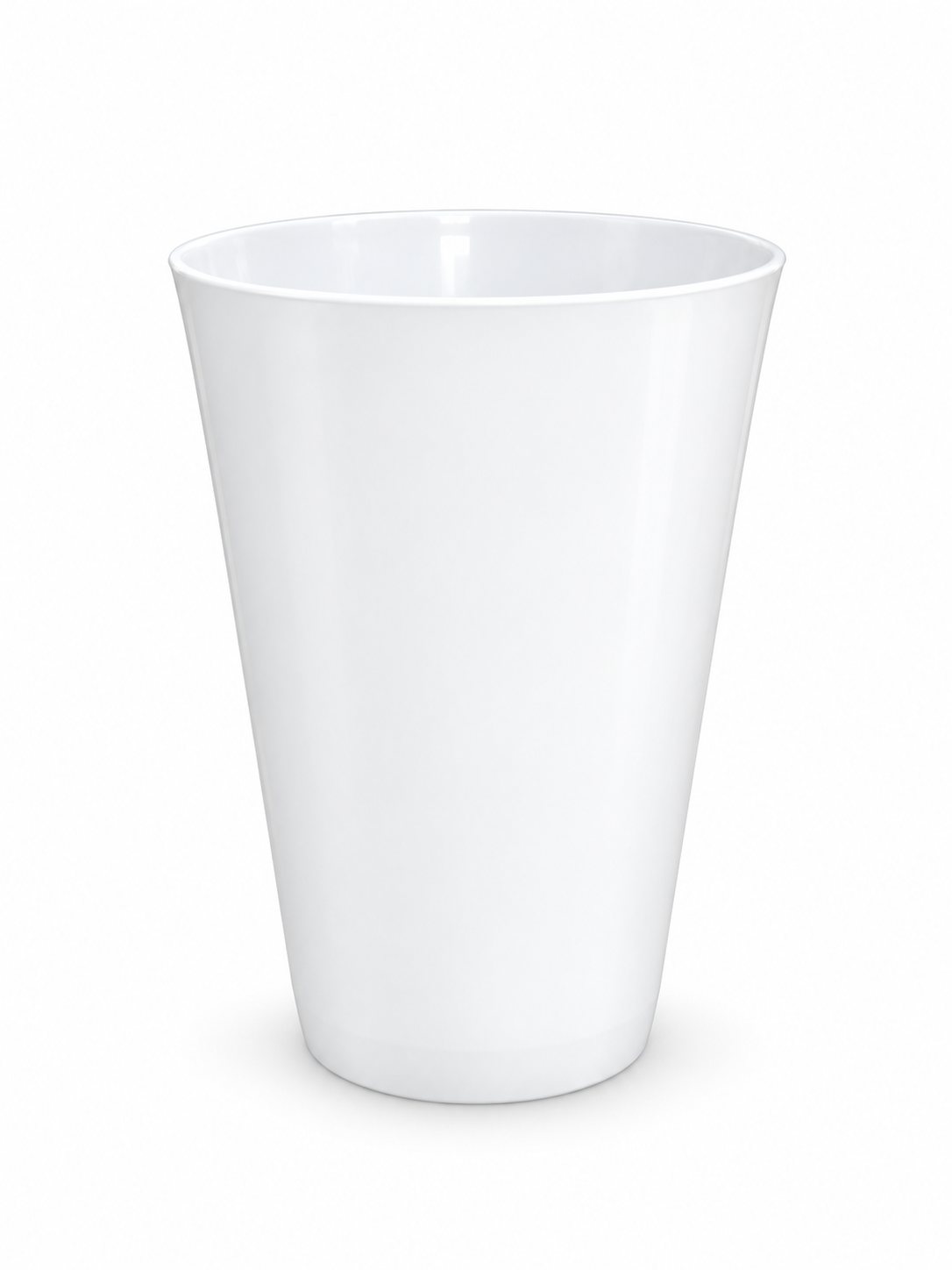

Conical form
Supported form within the S2 application range.

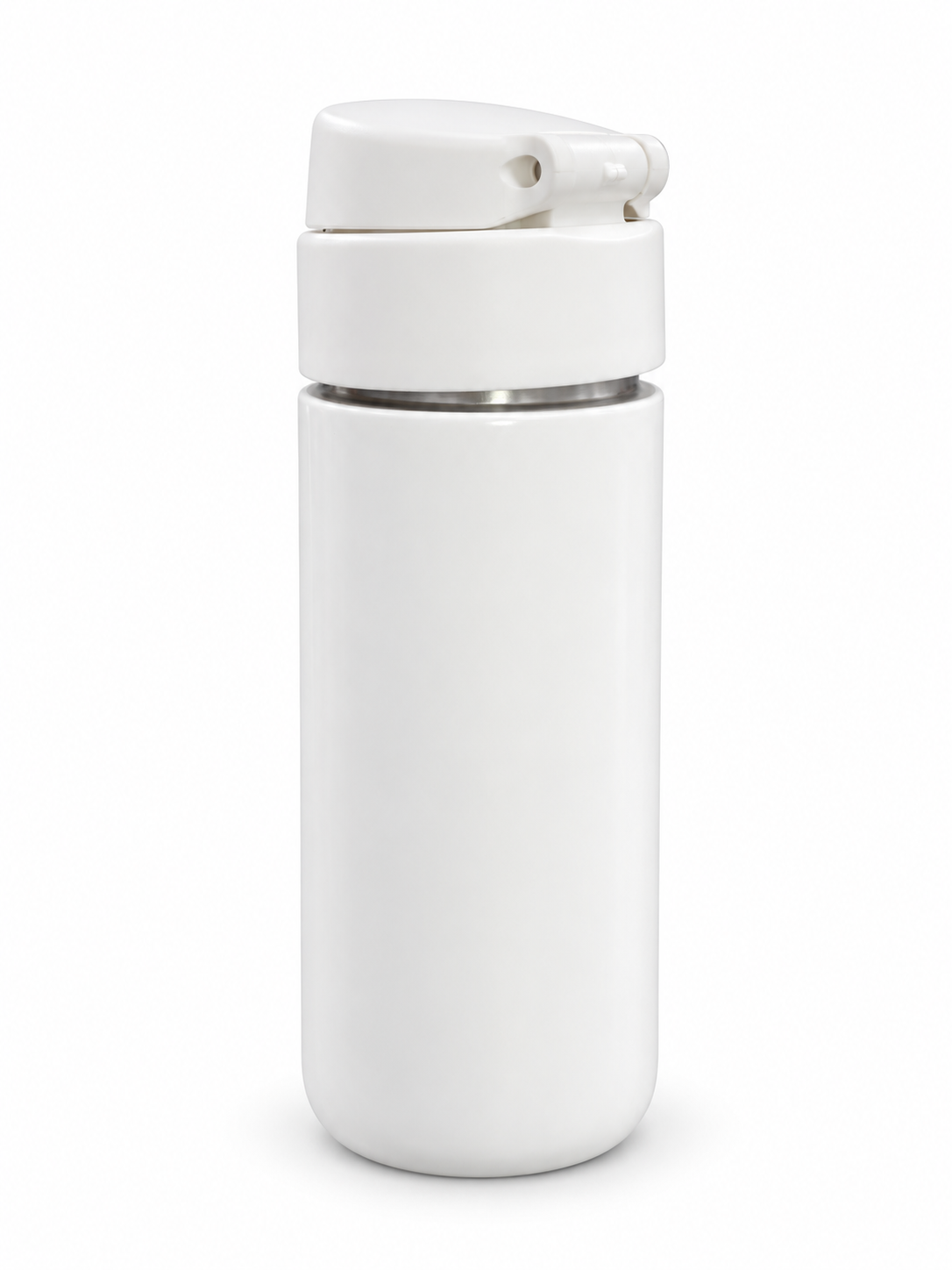

Cup / vessel form
Supported form within the S2 application range.

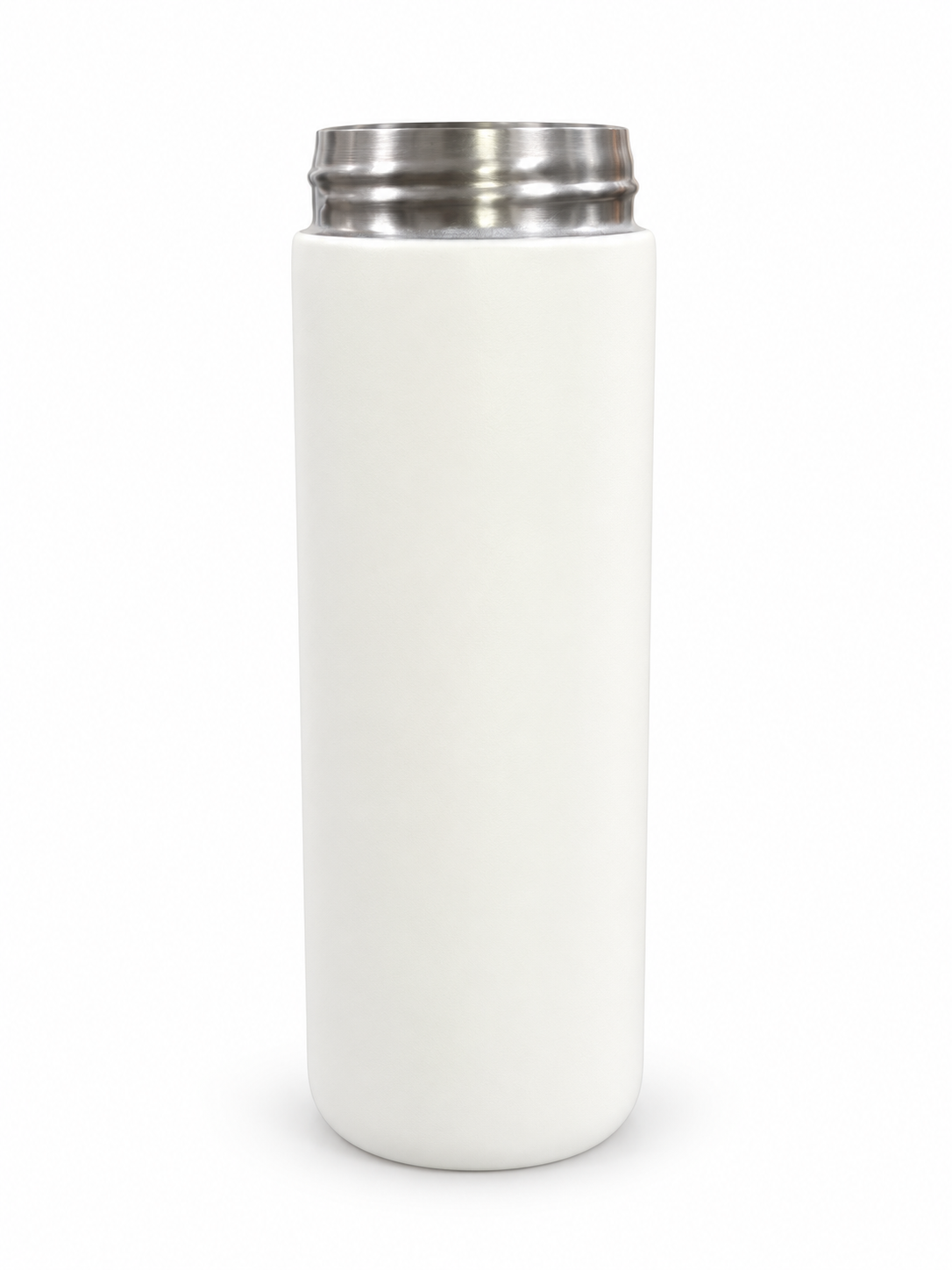

Tall cylindrical form
Supported form within the S2 application range.

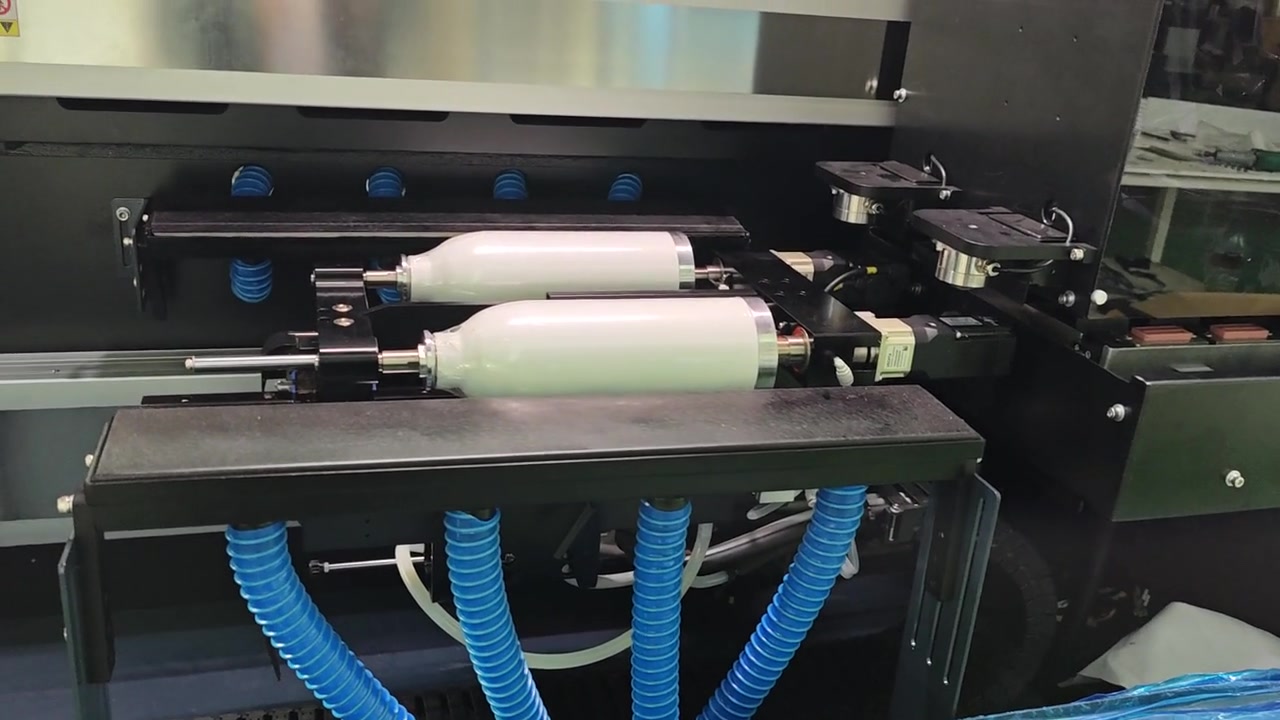

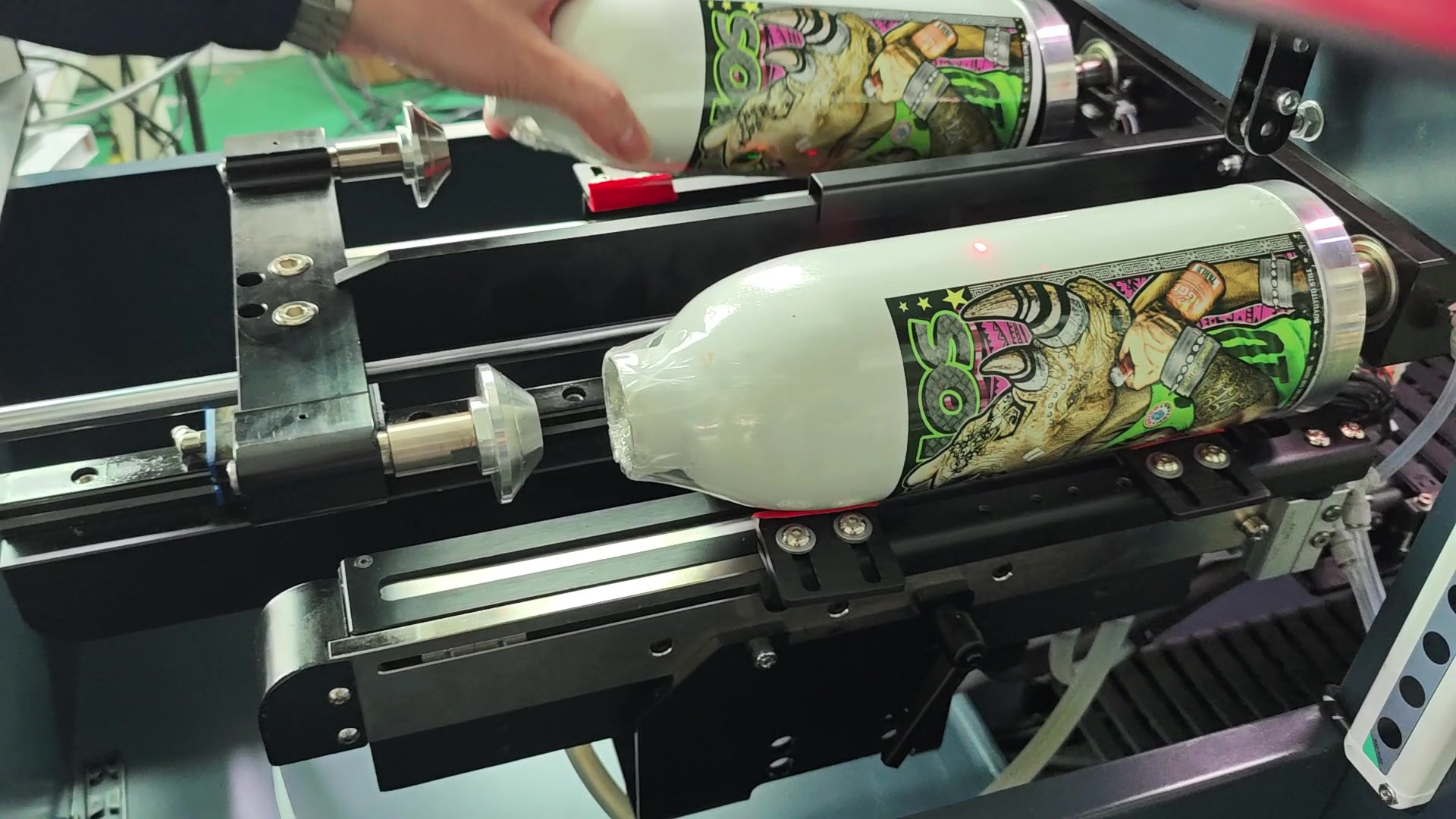

03 · REAL PRINTING PROCESS
See the S2 process in operation.
Real machine footage shows fixture positioning, active printing and visible process conditions in the S2 workflow.
04 · CURRENT CAPABILITY
Key S2 capabilities.
- pcs/min
- Up to 10
- mm diameter
- 45–120
- mm product height
- 10–250
- Gen5i or I1600 heads
- 6–8
360° seamless printing
For supported round objects.
Servo-driven system
Including servo tilt for conical products.
Controlled ink & UV
Negative-pressure supply, white circulation, LED UV.

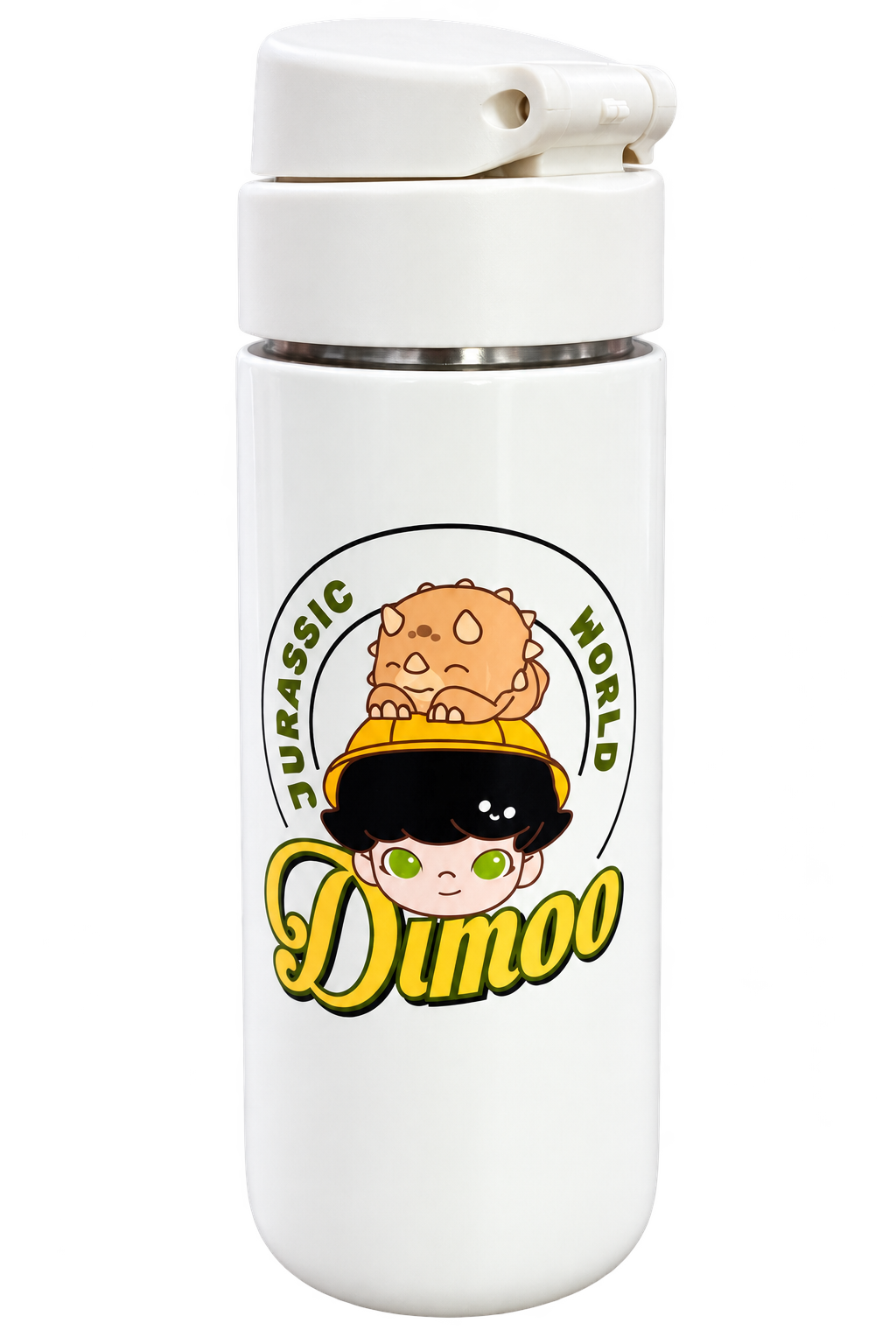

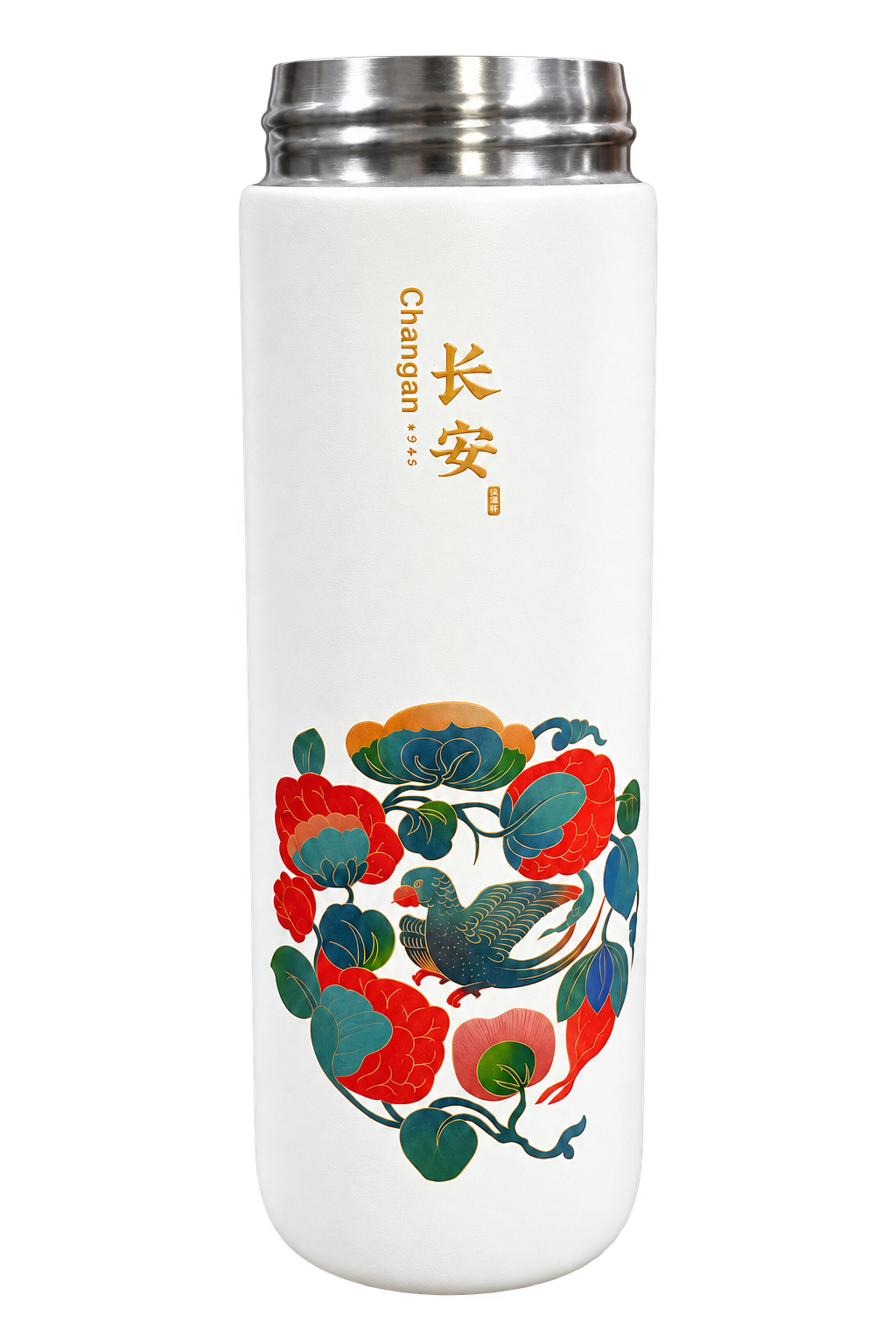

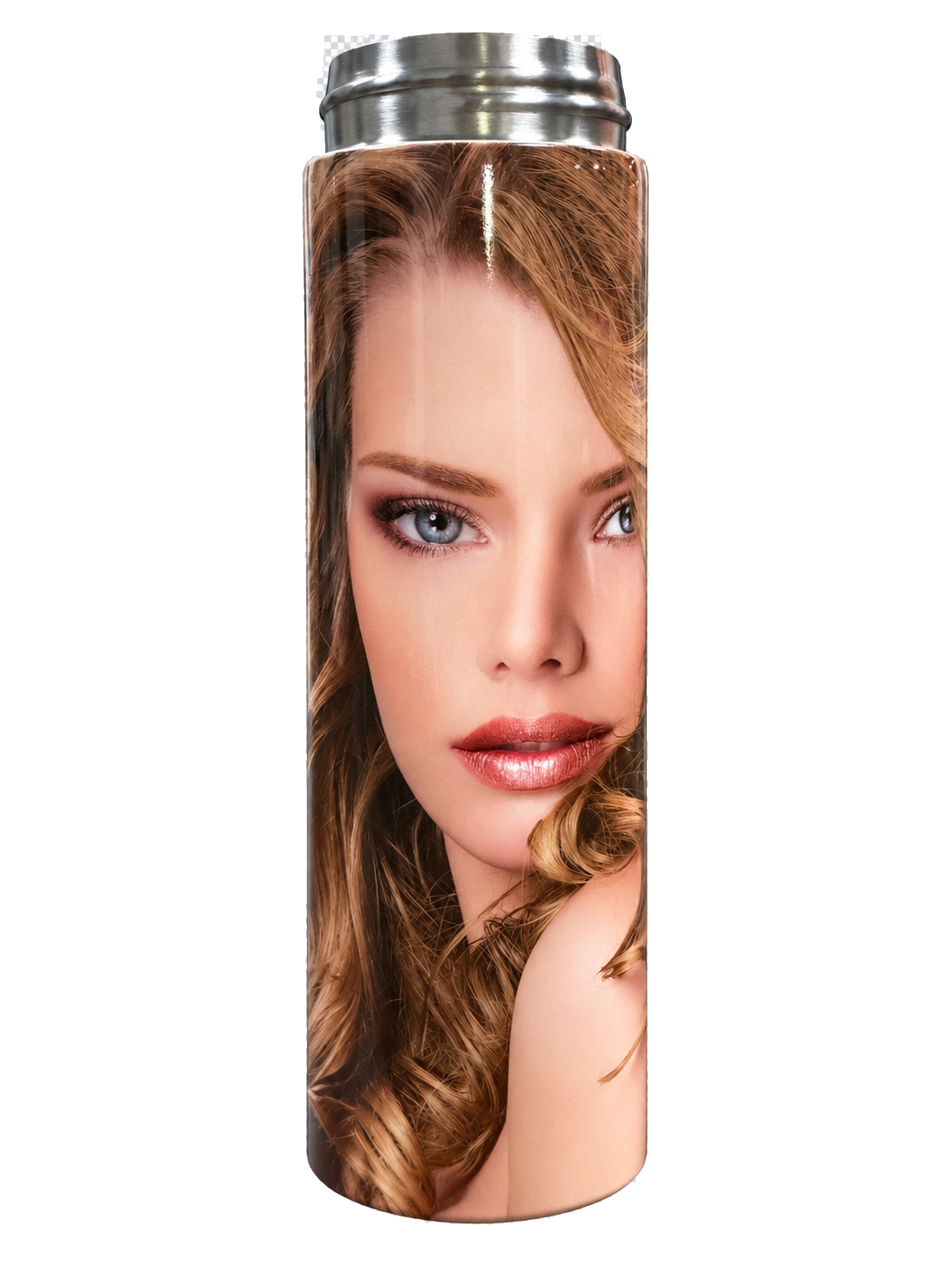

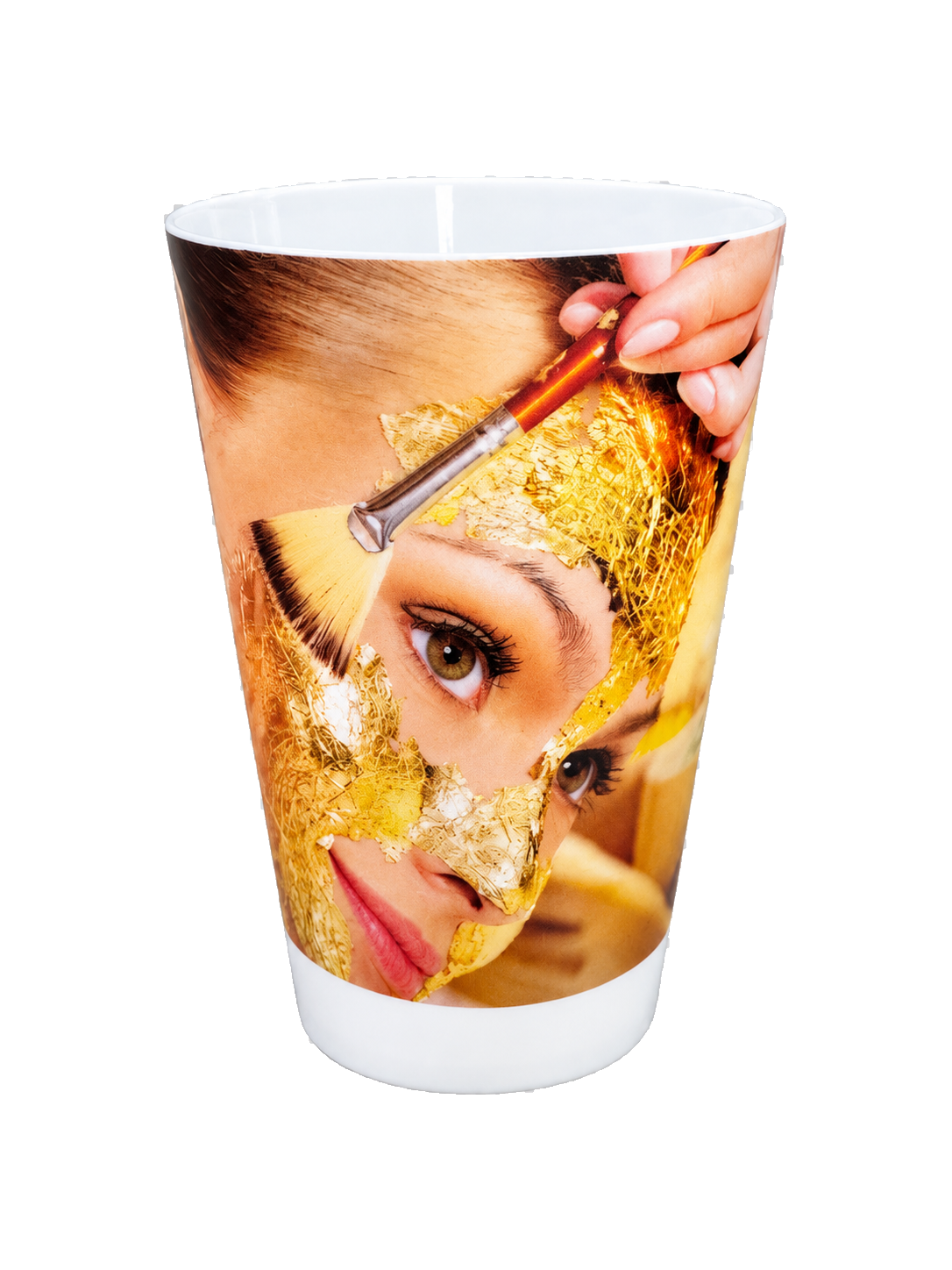

05 · APPLICATION RESULTS
Cylindrical and conical result views.
Printed results across cylindrical and conical application forms.
06 · TECHNICAL SPECIFICATIONS
S2 operating specifications.
Key configuration and operating ranges are shown below. Final configuration is reviewed against the application.
| Print heads | 6–8 Gen5i or I1600 |
|---|---|
| Product diameter | 45–120 mm |
| Product height | 10–250 mm |
| Print speed | Up to 10 pcs/min |
| Color configuration | Primer + W + CMKY + V (Primer optional) |
| Print resolution | 600×900 (3 pass) · 600×1200 (4 pass) · 600×1800 (6 pass) |
07 · APPLICATION VALIDATION
Validate the object before locking the solution.
S2 application fit depends on real project variables. Review object, geometry, material, print area and sample output before final configuration.
Request application reviewObject
Physical product and handling constraints.
Geometry
Diameter, height, taper and fixture suitability.
Material
Surface, pretreatment and adhesion requirements.
Print area
Artwork coverage and process requirements.
Sample validation
Review the actual result before final configuration.
